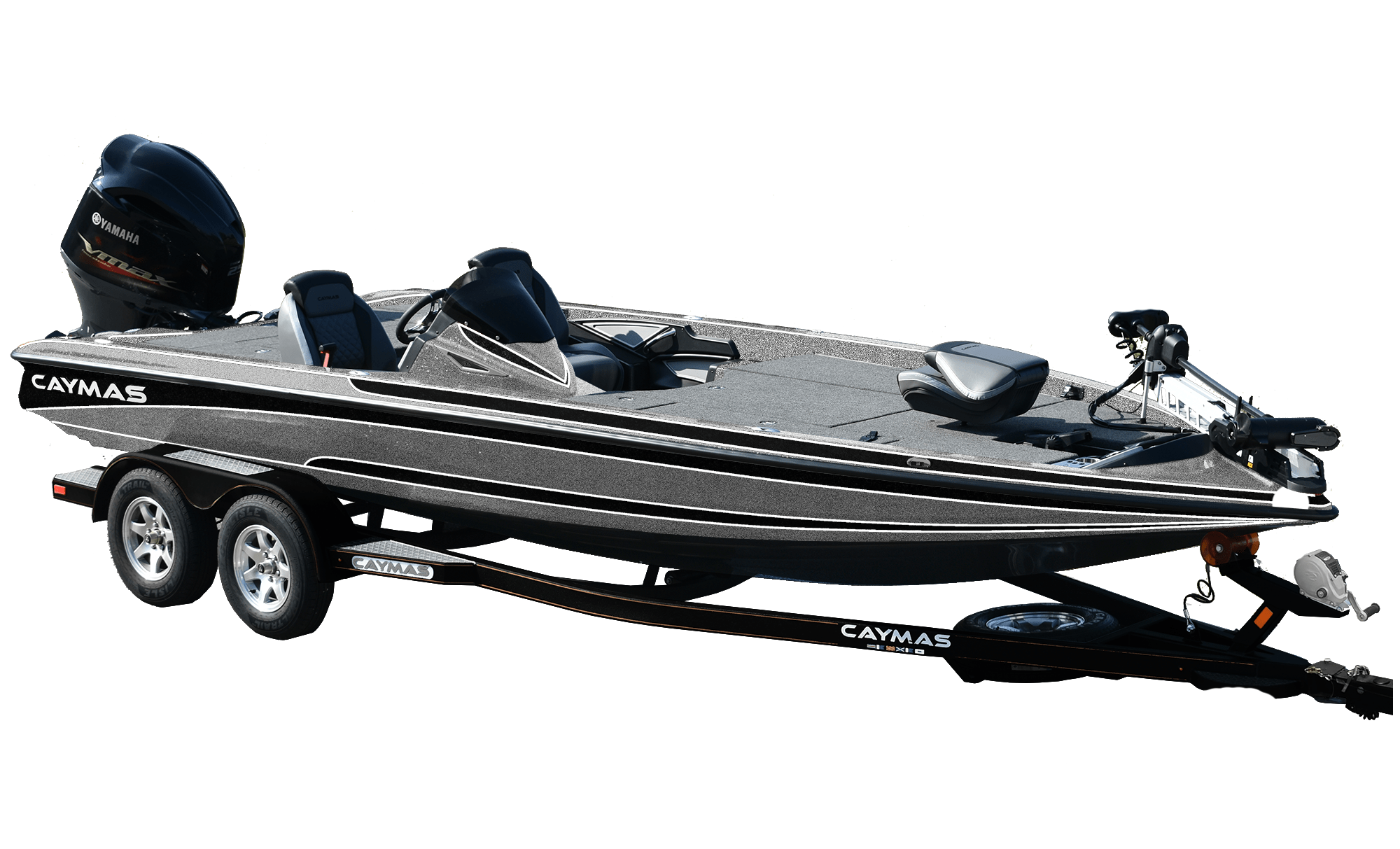

preview boat
continue...

*Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Caymas dealer prior to purchase.

Standard Features

CAYMAS DV 22 SPECIFICATIONS

  • Length – 22’ 0”
  • Max horsepower - 400 hp
  • Livewell Capacity – 50 gal
  • Length on Trailer (motor down, tongue swung in) – 25' 9"
  • Height on trailer - 83"
  • Port rod box length – 8' 4"
  • Starboard rod box length – 6' 9"
  • Front deck width narrowest - 3' 0"
  • Cooler capacity - 68 quarts
  • Beam – 102”
  • Approximate Dry Weight – 2,926 lbs
  • Fuel Capacity - 61 gal
  • Width on trailer – 102”
  • Freeboard - 24.25"
  • Center rod box length – 10’ 0"
  • Front deck length - 6' 8"
  • Front deck width widest - 6' 7"
  • Rear storage compartments (x 2) - 44 quarts each

CONSTRUCTION

  • Limited lifetime hull warranty
  • 100% composite construction - no wood
  • High performance resin and barrier coat
  • Zero-flex fully foamed and bonded stringer system
  • Plumbing and electrical systems factory tested
  • 3-year limited component warranty
  • Tri-core composite transom
  • Hull hand laid fiberglass construction
  • Premium gelcoat with UV inhibitors

SAFETY AND QUALITY

  • Automatic bilge pump
  • Built-in LED bow navigation lights
  • Custom digital switching with tinned wiring
  • Surf Turf aft step mats
  • Walk through tempered glass windshield
  • Stainless steel boarding grab handle
  • LED cockpit courtesy lights (4)
  • Tilt steering wheel
  • Waterproof stainless steel compartment latches and striker plates
  • Stainless steel gunnel mounted handrails at cockpit (36")
  • Electric bilge pump
  • Removeable LED stern light
  • Horn
  • Surf Turf bow step mat
  • Recessed retractable boarding ladder
  • Stainless steel passenger grab handles
  • SeaStar hydraulic steering
  • Custom polished aluminum jackplate
  • Stainless steel bow, mid-ship, and stern pull-up cleats

FISHING FEATURES

  • High capacity rear insulated livewell with divider
  • (2) 800 gph livewell recirculation pumps
  • Livewell timer
  • 3 retractable rod buckles (2 at bow, 1 at rod ramp)
  • 6 gauge trolling motor harness
  • Oversized bow trim switch buttons for easy foot operation
  • Built-in fish measuring board with tool holder
  • LED compartment lights
  • Passenger side rod ramp
  • Locking oversized storage boxes
  • (2) 800 gph livewell aerator pumps
  • (2) 800 gph livewell pump-out pumps
  • Livewell overflow system
  • Front deck tool and plier organizer with cupholder
  • 10 gauge clean power harness for electronics
  • Deck recess for trolling motor foot pedal
  • Fully finished fiberglass boxes throughout with custom mats
  • LED livewell lights
  • Passenger footrest
  • Center bow rod box with tackle organizing system

CONVENIENCE AND COMFORT

  • Custom suspension driver and passenger folding seats with adjustable slides and swivel bracket
  • Surf Turf cockpit flooring
  • AGM cranking battery
  • Minn Kota 4 bank, 15 amp battery charger
  • Custom 5” digital gauge with data display
  • Stainless steel bow and transom eyes
  • 2 stainless steel drink holders in cockpit
  • Remote drain plug
  • Chrome fuel fill
  • Custom suspension rear passenger folding seats with swivel brackets (2)
  • Stainless steel prop
  • Custom steering wheel
  • Driver’s console with extended leg room
  • Lid pistons on storage and rod boxes
  • Fully insulated built-in ice chest
  • Plush 24 oz carpet with edge trim
  • Trolling motor battery trays

TRAILER

  • Tandem axle with dual disc brakes
  • Custom 14” aluminum wheels and balanced radial tires with matching spare tire
  • Swing tongue
  • Ratchet trailer tie downs
  • LED waterproof tail, marker, and reverse lights
  • Custom pin stripe to match boat
  • 5" Channel frame with custom fitted bunks
  • Vault Hubs with 10 year limited warranty
  • Dutton-Lainson heavy-duty winch and jack
  • Seven pin trailer plug
  • Rock Guard polyurea with clearcoat protective finish
