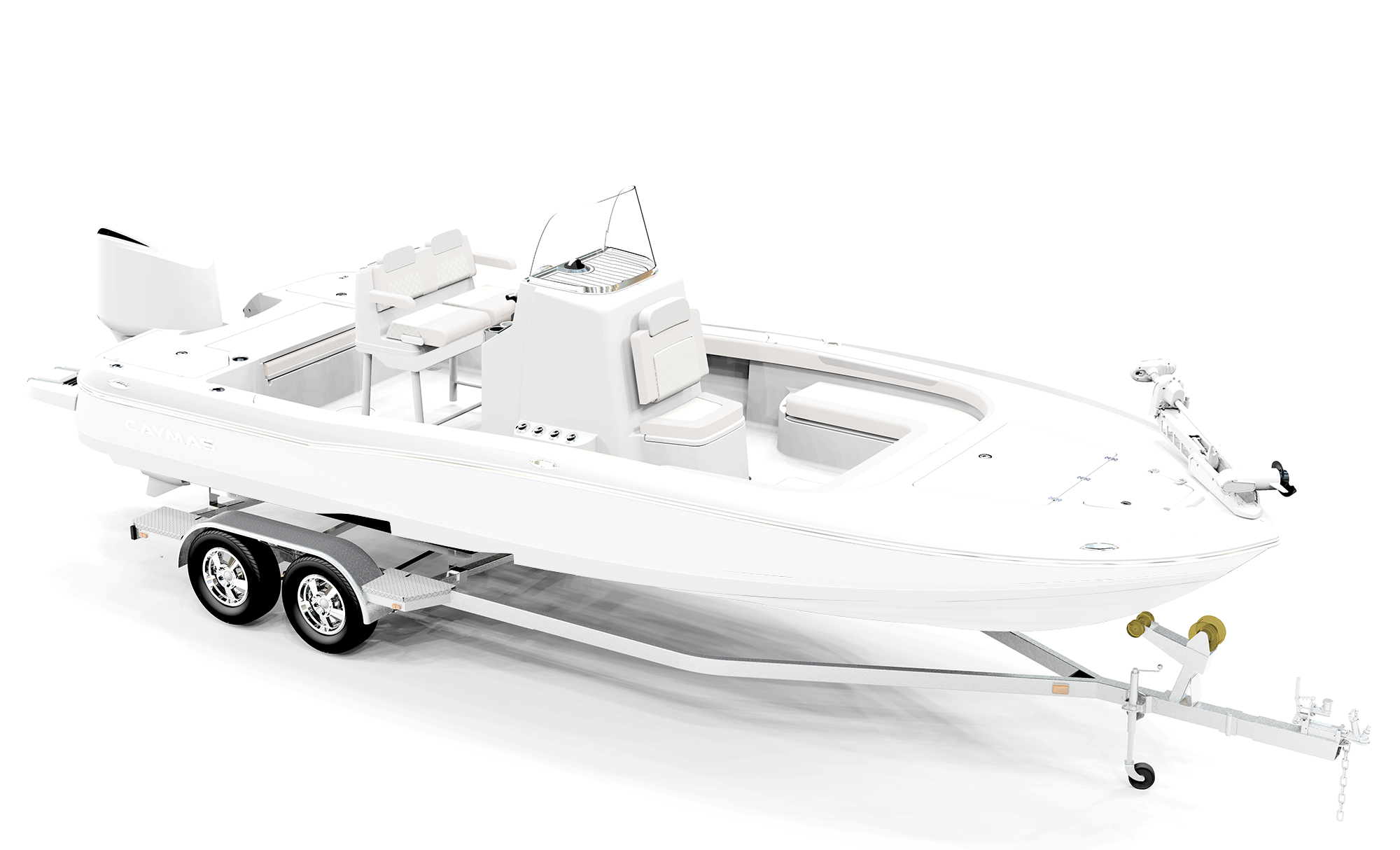

CAYMAS 28 HB SPECIFICATIONS
- Length - 27' 7"
- Height (Waterline to top of hardtop) - 8' 1"
- Deadrise at transom - 18.5 degrees
- Dry weight with engines - 4,300 lbs
- Beam - 9' 4"
- Draft (Engines up) - 16"
- Freeboard - 24"
- Max horsepower - 450 hp
- Fuel - 120 gal.
- Livewells (each) - 35 gal.
- Freshwater - 8 gal.
- Forward fish box - 45 gal.
- Patented Michael Peters double Stepped V Ventilated Tunnel (SVVT) running surface
- 3-year limited component warranty
- Tri-Core composite transom
- Hand-laid fiberglass hull
- Premium gelcoat, Pure White, with UV inhibitors
- Plumbing and electrical systems tank tested
- Limited lifetime hull warranty
- 100% composite construction - no wood
- High performance resin and barrier coat
- Zero-flex fully foamed finished stringer grid system with integrated chase tubes
- Fuel tank 5052 aluminum
- 35 gal. starboard-side transom livewell with 800 gph pump and high-speed pick-up
- 4 gpm raw water washdown pump
- Mid-ship 500 gph automatic pump
- 6 gauge trolling motor wiring harness
- Circuit breaker protected tinned wiring
- LED anchor light and navigation lights integrated into hard top
- LED interior console lights
- LED livewell lights
- Factory installed outboard engine of choice with engine gauge
- Trolling motor battery trays (36v)
- Central manifold drain system w/shut-off valves
- (2) 1500 gph bilge pumps (1 automatic, 1 manual)
- Large fish box with macerator pump
- Battery switch
- Electric trim tabs with LED indicators
- LED cockpit courtesy lights
- LED compartment lights
- LED under gunnel lights
- Stainless steel push-button switches with backlit LED indicator lights
DECK & HULL
- (7) 8" thru-bolted stainless steel pull-up cleat
- 2 custom swim platforms; 1 with boarding ladder
- Anchor locker with integrated anchor holder
- Heavy duty rub rail with stainless steel insert
- 4 gunnel mounted stainless steel rod holders
- Aluminum backing plates glassed in for seats, cleats, rails, rod holders & tops
- Completely finished fiberglass lids, boxes, doors, and bilge area
- 4" jackplate
CONSOLE / HELM
- Custom fully finished fiberglass console with large access door
- Porta Potti
- 8 stainless steel vertical console rod holders
- Pro series color-matched fiberglass leaning post with custom flip-up bolster seats and backrest, 4 rod holders and 2 stainless steel lighted cup holders
- 12 Volt accessory plug
- Voyager compass surrounded by custom Surf Turf mat
- Surf Turf flooring inside of console
- Stainless steel console grab rail
- Custom console with recessed footrest and storage box
- Edson® stainless steel comfort grip steering wheel with power knob and tilt steering
- Convenient USB port in console storage box
- Front of console has built-in cooler with seat cushion and backrest
- Dash accommodates (2) 12” screens
- Surf Turf mat on helm step pads and top of cooler (if equipped)
- Tempered glass windshield with powder coated frame
- Custom aft bench seat with cushion and folding backrest and removable fiberglass storage bin
- 2 lockable rod storage lockers - port and starboard
- Stainless steel lid-latches with stainless steel striker plates
- Under-gunnel rod storage
- Raw water washdown station conveniently located under gunnel
- Self-bailing cockpit with custom non-skid decking
