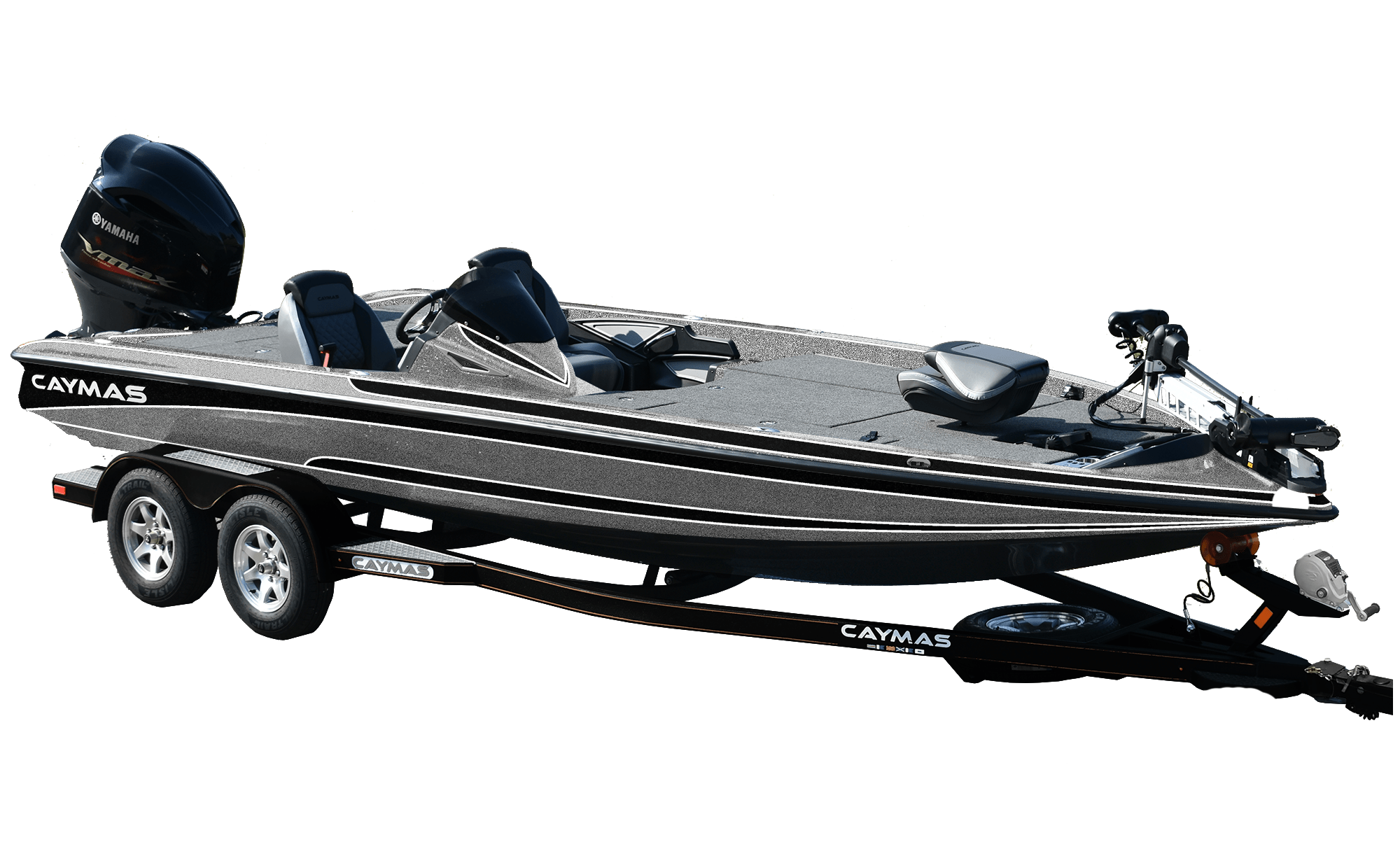

My - 2021MY - CX 21 Pro

preview boat
continue...

*Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Caymas dealer prior to purchase.

Standard Features

CAYMAS CX21 PRO SPECIFICATIONS

  • Length – 21’ 4”
  • Max horsepower - 300 hp
  • Livewell Capacity – 44 gal
  • Length on Trailer (motor up, tongue extended) – 27’ 2”
  • Length on Trailer (motor down, tongue extended) – 26’ 2”
  • Width on trailer – 102”
  • Center rod box length – 8’
  • Front deck (carpeted area) length - 7' 9"
  • Cooler capacity - 32 quarts (8 gal)
  • Day box capacity - 48 quarts (12 gal)
  • Beam – 96”
  • Approximate Dry Weight – 1,900 lbs
  • Fuel Capacity - 50 gal
  • Length on Trailer (motor up, tongue swung in) – 25’ 7”
  • Length on Trailer (motor down, tongue swung in) – 24’ 7”
  • Port rod box length – 8’ 4"
  • Starboard rod box length – 7’
  • Front deck (carpeted area) width - 6' 7" at widest point, 3' 9" at narrowest point
  • Rear dry box capacity (each) - 100 quarts (25 gal)
  • Dry storage compartment capacity (between seats) - 12 quarts (3 gal)

PRO MODEL FEATURES

  • Lowrance Ghost 47” trolling motor
  • Lowrance® HDS 12 LIVE at console
  • Lowrance Point-1 antenna
  • NEMA harness
  • Oxygen Innovations livewell system
  • Custom boat cover
  • Stainless steel fenders on trailer
  • Lowrance® HDS 12 LIVE at bow
  • Lowrance® 2-IN-1 Active Imaging
  • 2 black Blade Series 8’ Power Poles
  • Ethernet cable
  • Keel protection
  • Dual disc brake upgrade on trailer

CONSTRUCTION

  • Limited lifetime hull warranty
  • 100% composite construction - no wood
  • High performance resin and barrier coat
  • Zero-flex fully foamed stringer system
  • Plumbing and electrical systems factory tested
  • 3-year limited component warranty
  • Tri-core composite transom
  • Hull hand laid fiberglass construction
  • Premium gelcoat with UV inhibitors

SAFETY AND QUALITY

  • Automatic bilge pump
  • Finished bilge compartment with access doors to pumps and batteries
  • Removeable LED stern light
  • Horn
  • Non-skid bow step mat
  • Recessed retractable boarding ladder
  • Retractable passenger grab handle
  • Hot Foot throttle
  • SeaStar hydraulic steering
  • Custom polished aluminum jackplate
  • Stainless steel bow, mid-ship, and stern pull-up cleats
  • Electric bilge pump
  • Built-in LED bow navigation lights
  • Circuit breaker protected tinned wiring with custom switches
  • Non-skid aft step mats
  • Plexiglass tinted removeable windshield (2 on dual console)
  • Stainless steel boarding grab handle
  • Stainless steel passenger grab handle
  • LED cockpit courtesy light
  • Tilt steering wheel
  • Waterproof stainless steel compartment latches

FISHING FEATURES

  • 2 independent high capacity rear insulated livewells
  • (2) 800 gph livewell recirculation pumps
  • Livewell timer
  • 1 bike seat and pro-pole
  • 2 front deck seat locations
  • Front deck tool and plier organizer with cupholder
  • 10 gauge clean power harness for electronics from bow to stern
  • Deck recess for trolling motor foot pedal
  • Fully finished fiberglass boxes throughout with custom mats
  • LED livewell lights
  • Passenger side rod ramp
  • Locking oversized storage boxes
  • Center bow rod box with tackle organizing system
  • (2) 800 gph livewell aerator pumps
  • (2) 800 gph livewell pump-out pumps
  • Livewell overflow system
  • 1 fold-down fishing seat
  • 3 retractable rod buckles (2 at bow, 1 at rod ramp)
  • 6 gauge trolling motor harness
  • Oversized bow trim switch buttons for easy foot operation
  • Built-in fish measuring board with tool holder
  • LED compartment lights
  • Stainless steel bilge and livewell discharge plate
  • Passenger footrest with integrated tackle/storage drawer
  • Folding fish net with custom holder

CONVENIENCE AND COMFORT

  • Custom color selection for entire boat and upholstery
  • Surf Turf cockpit flooring
  • AGM cranking battery
  • Custom steering wheel
  • Center console storage with fiberglass lid
  • Custom 5” digital gauge with data display
  • Stainless steel bow and transom eyes
  • Fully insulated built-in ice chest with custom Surf Turf mat
  • Plush 24 oz carpet with edge trim
  • Trolling motor battery trays
  • Custom suspension driver and passenger bucket seats with adjustable slides
  • Stainless steel prop
  • Fully padded front deck including lids
  • Dual Pro 4 x 15 battery charger
  • Driver’s console with extended leg room
  • Lid pistons on storage and rod boxes
  • Turn-signal trim on steering wheel (single)
  • 4 stainless steel drink holders in cockpit
  • Remote drain plug
  • Chrome fuel fill

TRAILER

  • Aluminum diamond-plate tread for front and rear step pads
  • Easy-step oversized bow step pad
  • Ratchet trailer tie downs
  • Tandem axle with disc brakes on one axle
  • Caymas lighted step pads
  • LED waterproof tail, marker, and reverse lights
  • Rock Guard polyurea with clearcoat protective finish
  • Custom 14” aluminum wheels and balanced radial tires with matching spare tire
  • Vault Hubs with 10 year limited warranty
  • Seven pin trailer plug
  • Dutton-Lainson winch and jack
  • Swing tongue
  • Channel frame with custom fitted bunks
  • Custom pin stripe to match boat
